Machines list
Our manufacturing unit is spread over an area
of 10,000 m², of which 5,000 m² covered.
The processes are carried out with the aid of numerical control machines and traditional machinery with 3D/2D and CAD-CAM systems, respectively for the design and the programming of CNC machines.

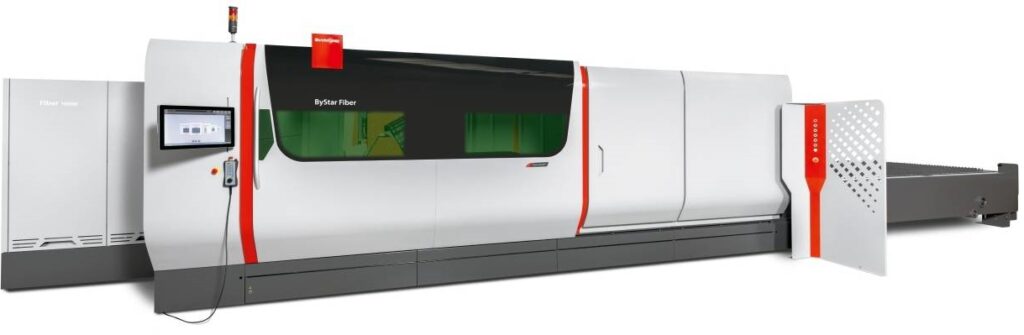

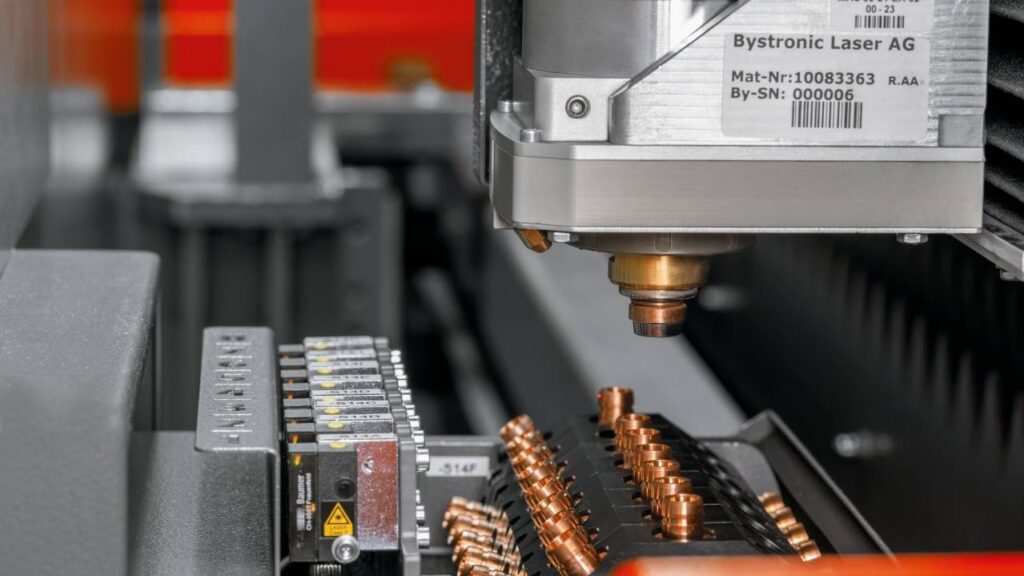

2D Fiber Laser Cutting centre
Bystronic BystarFiber 4020 6000 W
Working area 2000×4000.
2 towers Vertical Warehouses with 52 cassettes.
Processed materials:
Domex 240, Domex 700, Weldox 900, Raex, Inox 316, 304, 430
sp. from 1 mm to 25 mm for carbon steel
From 1mm to 25mm for AISI cut in Nitrogen.
Aluminum: Peraluman. up to 25mm
Galvanized sheet from 1 to 5 mm
Nominal sheet size
x: 4000 mm
y: 2000 mm
Working Area
x: 4064 mm
y: 2032 mm
z: 170 mm
Laser Power 6000 Watt

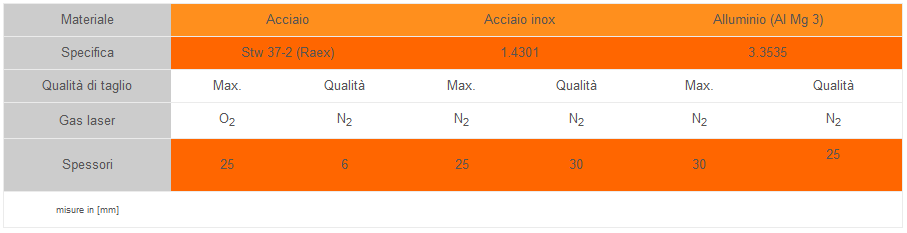

Limit of workable material
Welding robot
Kawasaki RA06L
Touch sensor robot for the three-dimensional search of the piece
arc sensor for joint tracking
double lathe positioner working range 2600×1500 – max capacity 500 kg
pulsed arc generator Mig-Mag Fronius – Transpuls Synergic 4000 Inverter
- length: 1650 mm
- maximum light between the plates: 2600 mm
- maximum diameter: 1500 mm
- maximum capacity: 500 Kg
- torque momentum: 723 Nm
- station change time: 5 sec

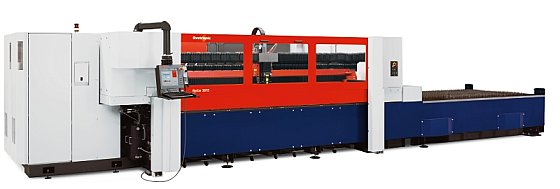

2D CO2 Laser Cutting centre
Bystronic Bystar 4020 6000 W
Working area 2000×4000.
2 towers Vertical Warehouses with 52 cassettes.
Processed materials:
Domex 240, Domex 700, Weldox 900, Raex, Inox 316, 304, 430
sp. from 1 mm to 25 mm(*) for carbon steel
From 1mm to 25mm(*) for AISI cut in Nitrogen.
Aluminum: Anticor. up to 15mm
Galvanized sheet from 1 to 5 mm

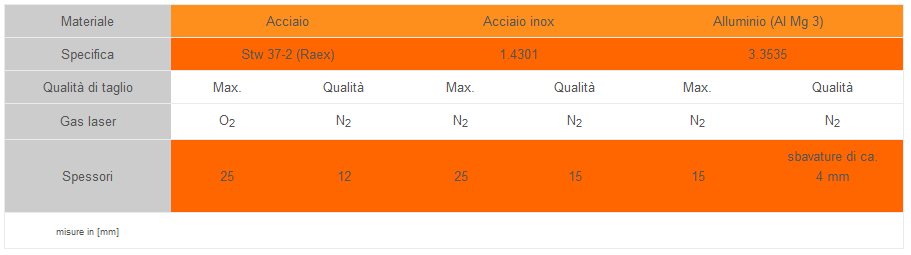

(*) quality of finish, plasma.
Nominal sheet size
x: 4000 mm
y: 2000 mm
Working Area
x: 4064 mm
y: 2032 mm
z: 170 mm
Laser Power 6000 Watt
Customer benefits:
- High Precision
- High Power
Data sheet
